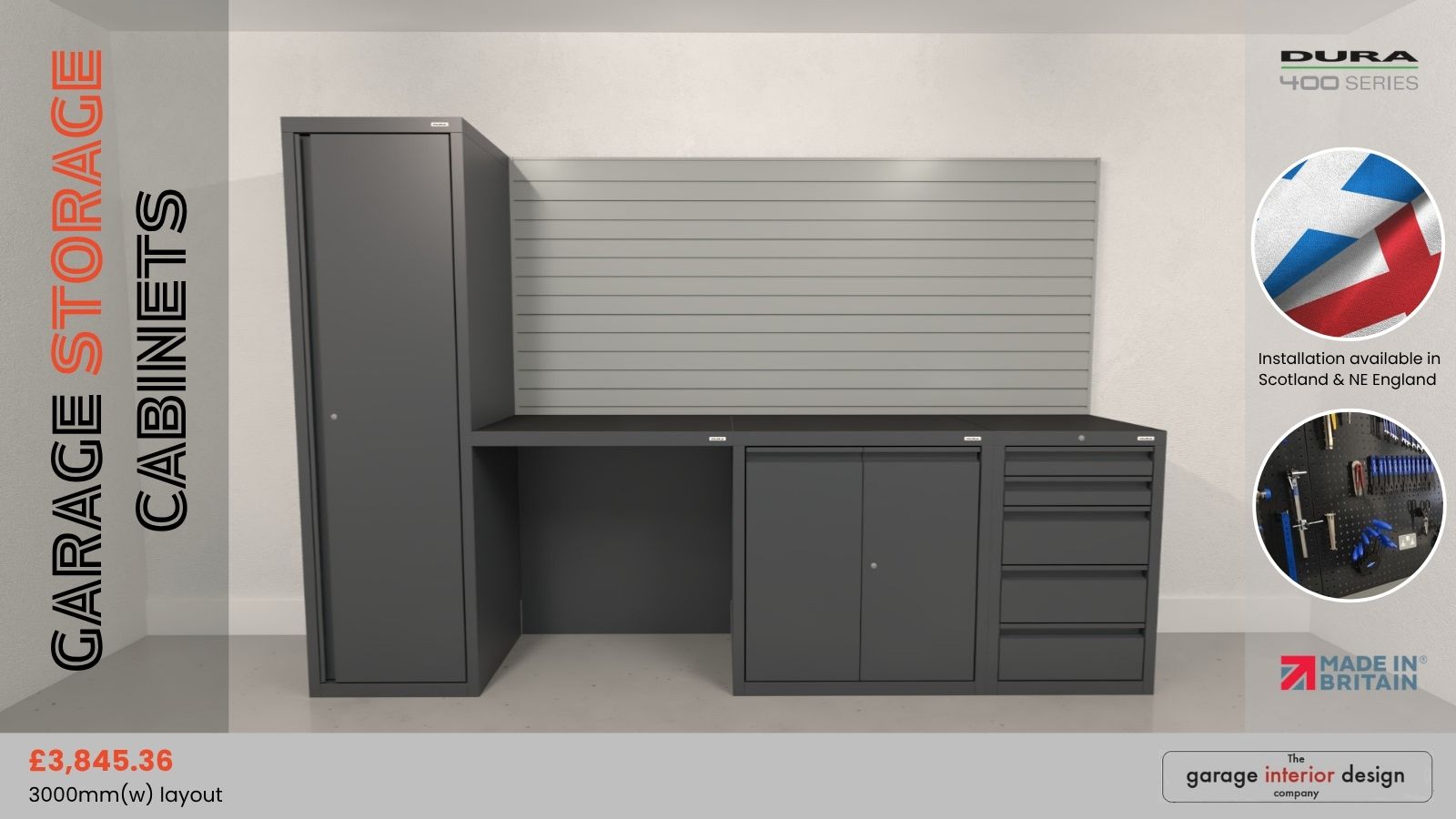

This cabinet layout is 3000mm(w) and is a combination of Dura 400 Series cabinets and StorePanel™ wall storage.
The tall cabinet (D4CU060) is 600mm(w) and has 3 x shelves. The standard door position is a right-opener, however this can be altered to a left-opener if required (please advise at order).
The base cabinet (D4BU090) is 900mm(w) and has 1 x shelf. The cabinet has a 2mm pinseal work surface.
The drawer cabinet (D4DU065) is 600mm(w). There are 5 x drawers (2 x medium and 3 x large) and each drawer has foam lining. The internal dimensions for each drawer are: medium - 480mm(w) x 470mm(d) x 78mm(h) | large - 480mm(w) x 470mm(d) x 183mm(h).
Both cabinets are lockable.
The StorePanel™ gives coverage above the base cabinet up to the height of the tall cabinet (2000mm).
No StorePanel™ hooks are included in this package, but these can also be bought online and supplied at the same time as the cabinets and StorePanel™.
What is included?
- 1 x 600mm tall cabinet (includes 3 x internal shelves) (D4CU060 & D4SH060)
- 1 x 900mm base unit with doors (D4BU090)
- 1 x 900mm bridging unit (D4BR090)
- 1 x 900mm bridging infil panel (D4BI090)
- 1 x 600mm 5-drawer cabinet (D4DU065)
- 8 x StorePanel™ panels, 1220mm (STP122)
- 6 x mounting strips (STPMS001)
- 1 x U-cap trim, 1200mm (SWHDUCG-0012)
Dura 400 Series cabinets
- all Dura cabinets have a 10 year product guarantee
- cabinets are made to order and take around 5 weeks for delivery
- there is one standard colour choice - textured, anthracite/grey - RAL-7016T
- adjustable feet
- designed and manufactured in the UK
- tall cabinets, base cabinets & drawer cabinets all have locks for security
- wall cabinets do not have locks
- wall cabinet doors have dual gas struts
- cupboard cabinets have a magnetic door stopping system
- drawer cabinets are soft-closing
- each drawer has a 60kg load rating
- each drawer is foam-lined
- cabinets delivered built, therefore, only assembly required
- 0.9mm gauge steel
- z
